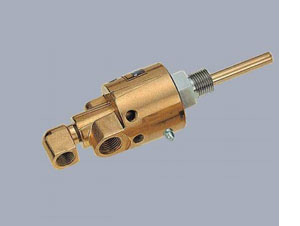

RSMD/RSSD
Multi spring seal are various contamination as most versatile design most of the component are inter changeable between balances & unbalance seals. These seals are not affected by the direction of shaft rotation.

Torque transmission from retainer shell to seal ring to don through drive lugs, all components are hold together help to easier installation and removed These seals are design to handle clear liquid under normal condition. These seals face material & elastomers can be varied as per Requirement of the application & Applicant. This seal are balance & unbalance & widely installed in the water pumps, circulation pumps along with pumps for chemical processing.



Product Images


Specification :
Size : 1/4" -4"
Pressure : 3Kg to 8 Kg
Temp. : 150°C
RPM : 1000 Rpm.
Thread : MM,BSP,NTP
Flow Passage : Two With Syphon System
Media : Water,Oil and Steam etc.
